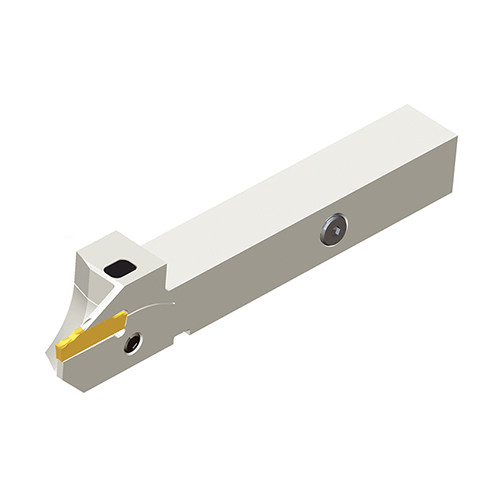

TTEL 16-32-3SH-TB
Side lock holders of turning, grooving & parting with High pressure coolant for Swiss type automatic lathes

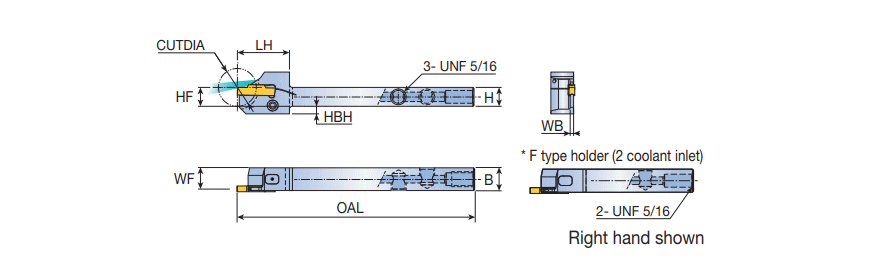

| Shank Height (H) | 16 mm | Overall Length (OAL) | 125 mm |
| Shank Width (B) | 16 mm | Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Parting | Tools for Swiss Machines | |
| Body Width (WB) | 2.4 mm | Body Material | Steel |
| Functional Width (WF) | 14.8 mm | Measurement Type | Metric |
| Head Length (LH) | 31.5 mm | Unit | M |
Product Features
| Family Description | Side lock holders of turning, grooving & parting with High pressure coolant for Swiss type automatic lathes | FamilyName | TTER/L-SH-TB |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.3000
Name
Groove/Turn Indexable Holders
FamilyName
TTER/L-SH-TB
BrandName
Taegutec
