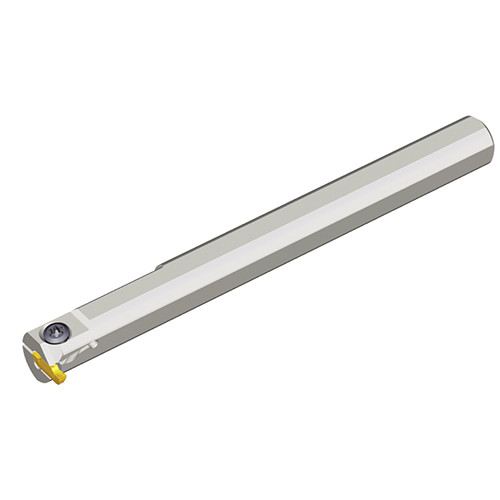

TGSIR 10-13-2
Boring bars with coolant hole for internal shallow grooving and turning on small diameter of Dmin = 12.5 mm with TDIM/P inserts

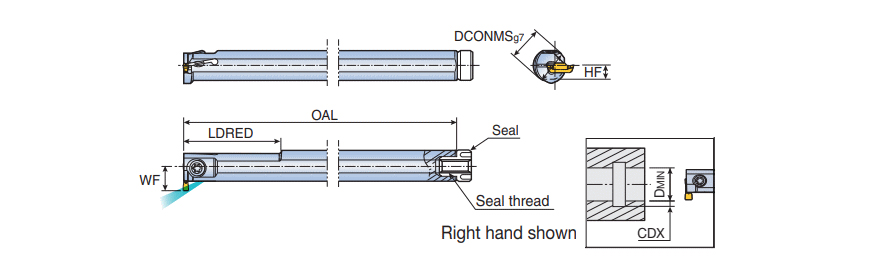

| Cutting Depth Maximum (CDX) | 2.5 mm | Overall Length (OAL) | 125 mm |
| Shank Width (B) | 5 mm | Application | | Int. Grooving | Tools for Swiss Machines | |
| Minimum Bore Diameter (DMIN) | 12.5 mm | Body Material | Steel |
| Functional Width (WF) | 7.6 mm | Measurement Type | Metric |
| Head Length (LH) | 25 mm | Unit | M |
Product Features
| Family Description | Boring bars with coolant hole for internal shallow grooving and turning on small diameter of Dmin = 12.5 mm with TDIM/P inserts | FamilyName | TGSIR/L |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.0900
Name
Groove/Turn Indexable Holders
FamilyName
TGSIR/L
BrandName
Taegutec
