TSM 315FD-S-60N-ZN11

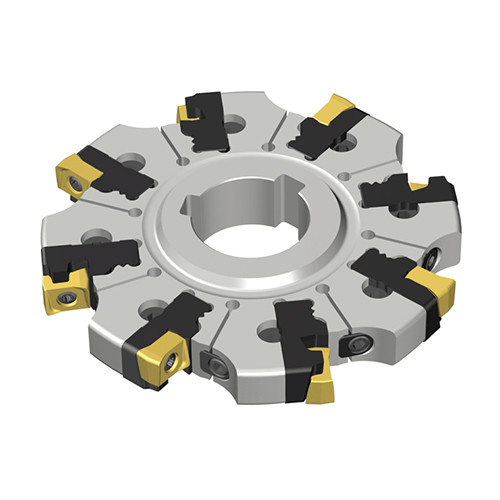

Adjustable slotting cutters with ZNHU inserts in disk type

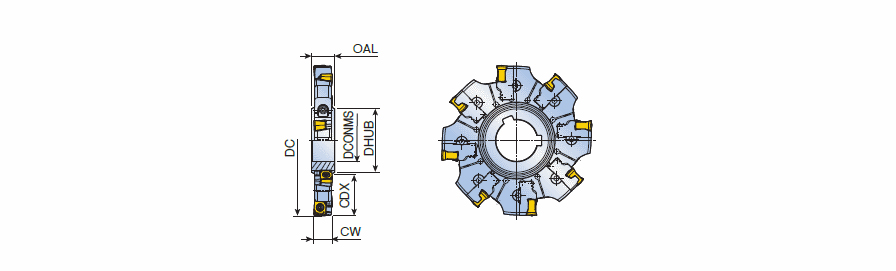

| Cutting Diameter (DC) | 315 mm | Cutting Width Minimum (CWN) | 14 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 12 Tooth | Flute Count (NOF) | 24 |
| Cutting Depth Maximum (CDX) | 110 mm | Application | | Bottom Shouldering | Side Slotting | Slitting | |
| Connection Diameter Machine Side (DCONMS) | 60 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 85 mm | Body Material | Steel |
| Hub Thickness (THUB) | 18 mm | Unit | M |
| Cutting Width Maximum (CWX) | 17 mm |
Product Features
| Family Description | Adjustable slotting cutters with ZNHU inserts in disk type | FamilyName | TSM-FD-S/W-ZN08/11/14 |
| Remarks | Cutters are set at the minimum width of cut range, unless specific width is not ordered | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
11.2550
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FD-S/W-ZN08/11/14
BrandName
Taegutec
