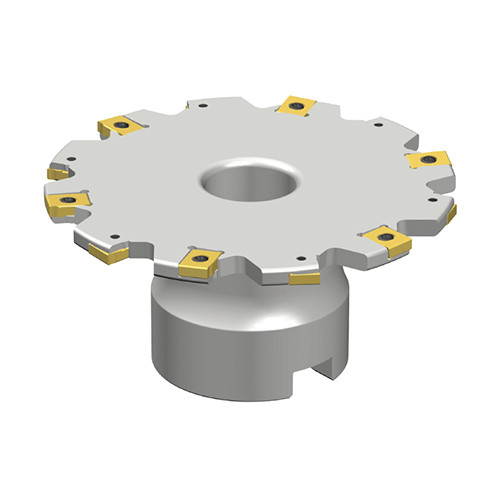

TSM 080FF-08-22R-Z043
Fixed pocket flange type slotting cutters with ZNHT inserts

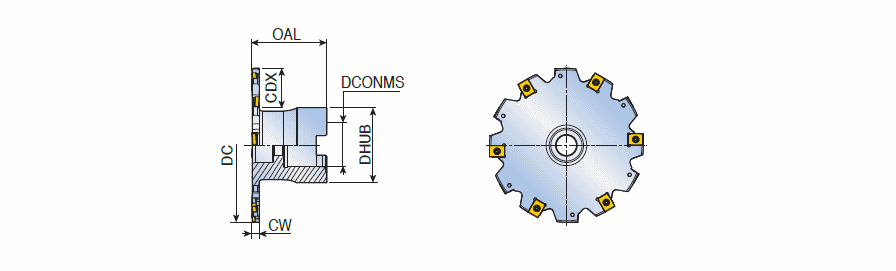

| Cutting Diameter (DC) | 80 mm | Overall Length (OAL) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 Tooth | Application | | Bottom Shouldering | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 20 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 40 mm | Body Material | Steel |
| Cutting Width (CW) | 8 mm | Unit | M |
| Flute Count (NOF) | 8 |
Product Features
| Family Description | Fixed pocket flange type slotting cutters with ZNHT inserts | FamilyName | TSM-FF-Z. |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
1.0450
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FF-Z.
BrandName
Taegutec
