TSM 100FD-10-27N-ZN08
Fixed pocket disc type slotting cutters with ZNHU inserts

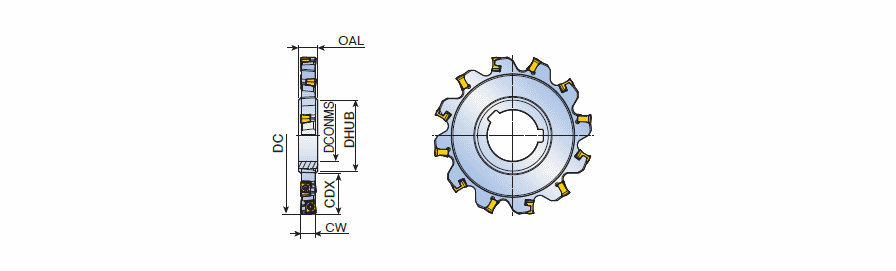

| Cutting Diameter (DC) | 100 mm | Cutting Width (CW) | 10 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 5 Tooth | Flute Count (NOF) | 10 |
| Cutting Depth Maximum (CDX) | 25.5 mm | Application | | Bottom Shouldering | Side Slotting | Slitting | |
| Connection Diameter Machine Side (DCONMS) | 27 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 41 mm | Body Material | Steel |
| Hub Thickness (THUB) | 15 mm | Unit | M |
Product Features
| Family Description | Fixed pocket disc type slotting cutters with ZNHU inserts | FamilyName | TSM-FD-ZN08/11 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.2500
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FD-ZN08/11
BrandName
Taegutec
