TSM 063FF-12-22R-ZN08

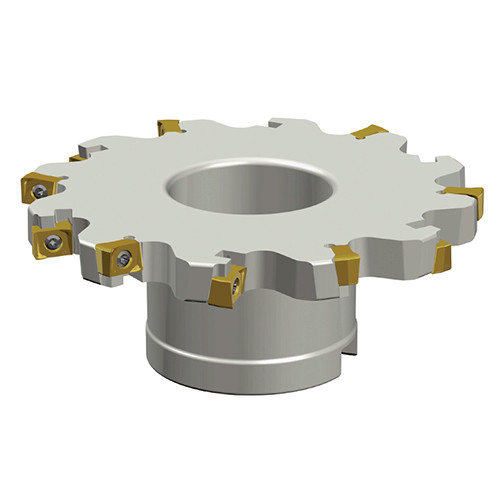

Fixed pocket flange type slotting cutters with ZNHU inserts

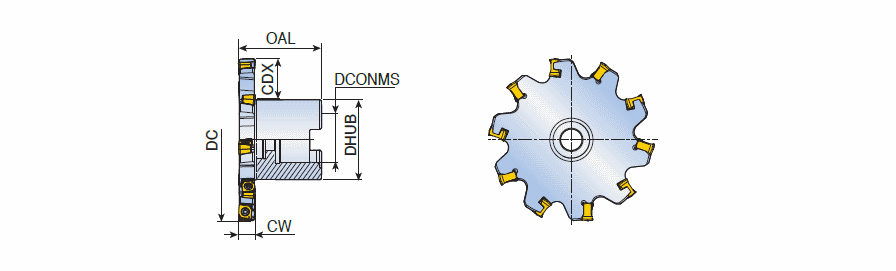

| Cutting Diameter (DC) | 63 mm | Overall Length (OAL) | 50 mm |
| Peripheral Effective Cutting Edge Count (ZEFP) | 3 Tooth | Application | | Bottom Shouldering | Side Slotting | T Slotting | |
| Cutting Depth Maximum (CDX) | 15 mm | Arbor Style | A |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 40 mm | Body Material | Steel |
| Cutting Width (CW) | 12 mm | Unit | M |
| Flute Count (NOF) | 6 |
Product Features
| Family Description | Fixed pocket flange type slotting cutters with ZNHU inserts | FamilyName | TSM-FF-ZN08/11 |
| COO | S.KOREA | BrandName | Taegutec |
Shipping Info
Weight per item
0.9350
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSM-FF-ZN08/11
BrandName
Taegutec
