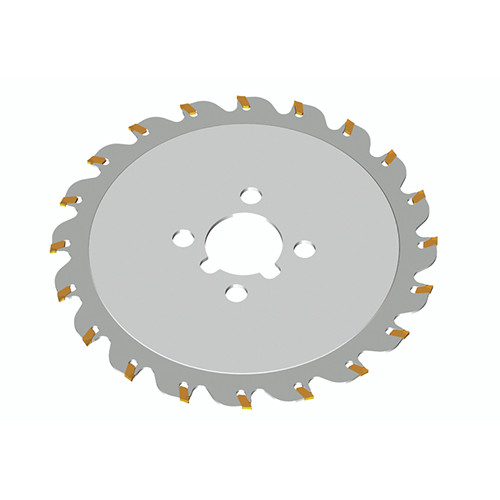

TSC 100 2.4 22K
Slotting cutters with single ended & self-clamped inserts

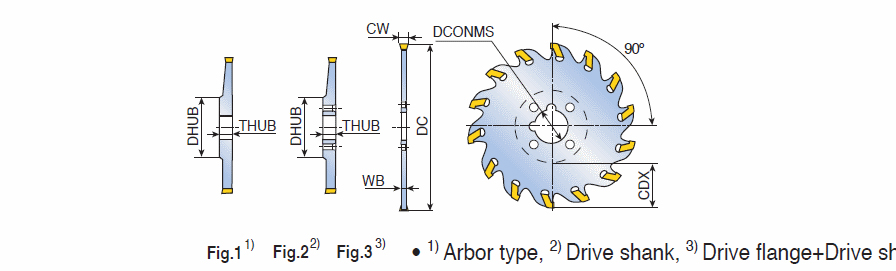

| Cutting Diameter (DC) | 100 mm | Flute Count (NOF) | 10 |
| Cutting Depth Maximum (CDX) | 26 mm | Application | | Side Slotting | Slitting | |
| Connection Diameter Machine Side (DCONMS) | 22 mm | Measurement Type | Metric |
| Hub Diameter (DHUB) | 46 mm | Body Material | Steel |
| Cutting Width Maximum (CWX) | 2.5 mm | Unit | M |
| Cutting Width Minimum (CWN) | 2.3 mm |
Product Features
| Family Description | Slotting cutters with single ended & self-clamped inserts | FamilyName | TSC-SLOTTING |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.1100
Name
Disc w/Hole Indexable Slotting Cutters
FamilyName
TSC-SLOTTING
BrandName
Taegutec
