TGB 32-4-TB
Double-ended blades with high pressure coolant for parting & deep grooving

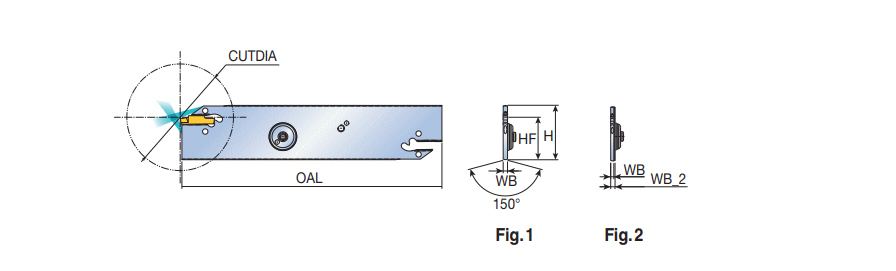

| Shank Height (H) | 32 mm | Cutting Direction (HAND) | Neutral |
| Body Width (WB) | 3.2 mm | Measurement Type | Metric |
| Overall Length (OAL) | 150 mm | Insert Seat Size Code (SSC) | 4 |
| Application | | Ext. Grooving | Parting | | Master Insert Identification (MIID) | TDXU 4E-0.4 |
| Body Material | Steel | Unit | M |
| Work Piece Parting Diameter Maximum (CUTDIA) | 90 mm |
Product Features
| Family Description | Double-ended blades with high pressure coolant for parting & deep grooving | FamilyName | TGB-TB. (Double-ended) |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.0800
Name
Parting Off Indexable Holders
FamilyName
TGB-TB. (Double-ended)
BrandName
Taegutec
