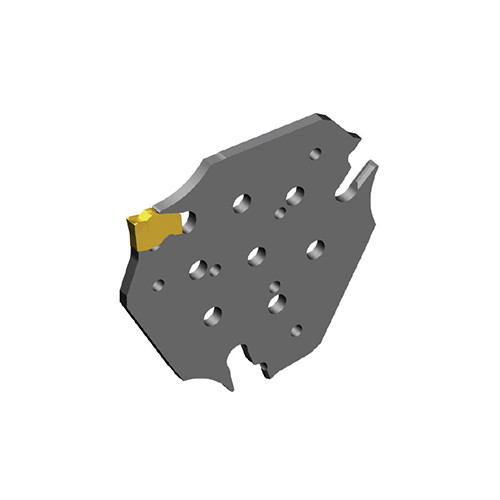

SFTB D82-3
Triangular Reinforced Blades for Parting and deep grooving with SFC/J single-ended inserts

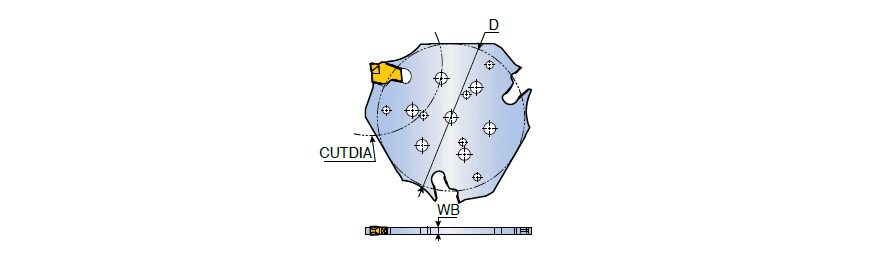

| Body Width (WB) | 2.5 mm | Measurement Type | Metric |
| Application | | Ext. Grooving | Parting | | Insert Seat Size Code (SSC) | 3 |
| Body Material | Steel | Nominal Diameter (D) | 64.3 mm |
| Work Piece Parting Diameter Maximum (CUTDIA) | 82 mm | Master Insert Identification (MIID) | SFC 3 |
| Cutting Direction (HAND) | Neutral | Unit | M |
Product Features
| Family Description | Triangular Reinforced Blades for Parting and deep grooving with SFC/J single-ended inserts | FamilyName | SFTB |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.1300
Name
Parting Off Indexable Holders
FamilyName
SFTB
BrandName
Taegutec
