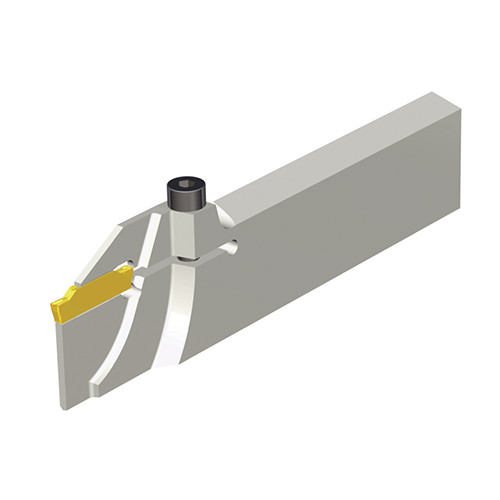

TGBR 26-2TI-D36R
Reinforced type blades with screw clamping for grooving and parting of Traub & Index machines

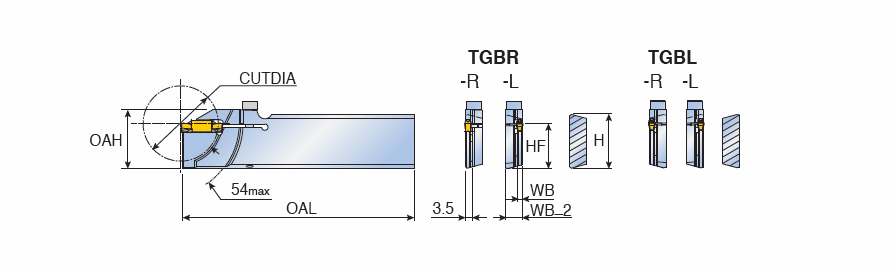

| Shank Height (H) | 26 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 1 |
| Shank Width (B) | 8 mm | Cutting Direction (HAND) | Right Hand |
| Overall Length (OAL) | 110 mm | Measurement Type | Metric |
| Overall Height (OAH) | 27.9 mm | Master Insert Identification (MIID) | TDXU 2E-0.3 |
| Application | | Ext. Grooving | Parting | | Unit | M |
| Body Material | Steel |
Product Features
| Family Description | Reinforced type blades with screw clamping for grooving and parting of Traub & Index machines | FamilyName | TGBR/L-TI-D R/L |
| COO | ISRAEL | BrandName | Taegutec |
Shipping Info
Weight per item
0.5300
Name
Parting Off Indexable Holders
FamilyName
TGBR/L-TI-D R/L
BrandName
Taegutec
