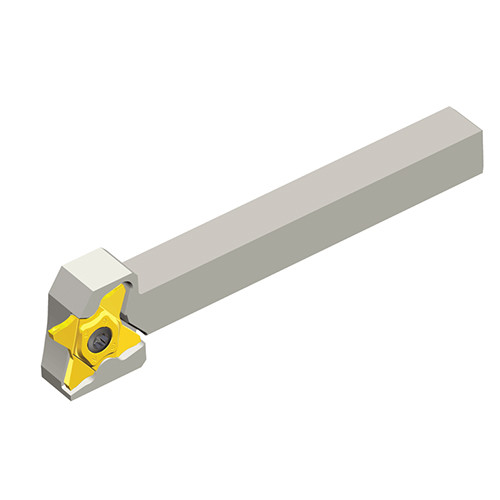

TQHL 20-27
External holders of Parting & Grooving with TQ. 27 inserts

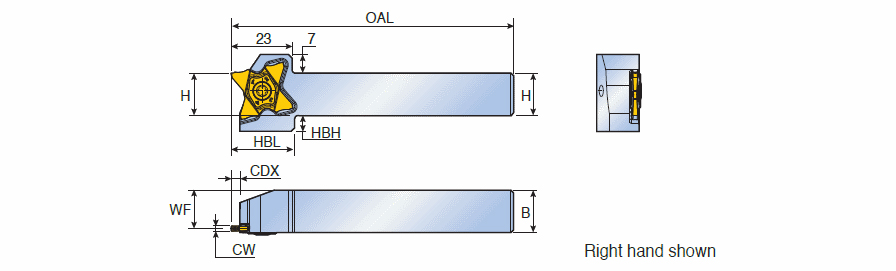

| Shank Height (H) | 20 mm | Body Material | Steel |
| Shank Width (B) | 20 mm | Work Piece Parting Diameter Maximum (CUTDIA) | 27 |
| Cutting Width Minimum (CWN) | 0.5 mm | Cutting Direction (HAND) | Left Hand |
| Cutting Width Maximum (CWX) | 5.3 mm | Measurement Type | Metric |
| Overall Length (OAL) | 120 mm | Insert Seat Size Code (SSC) | 27 |
| Head Length (LH) | 24 mm | Master Insert Identification (MIID) | TQJ 27-2.00-0.10 |
| Application | | Ext. Grooving | Ext. Grooving & Turning | Ext. Profiling | Ext. Threading (Groove Turn) | Parting | | Unit | M |
Product Features
| Family Description | External holders of Parting & Grooving with TQ. 27 inserts | FamilyName | TQHR/L-27 |
| Remarks | CWX is available up to 5.30mm for special inserts | BrandName | Taegutec |
| COO | S.KOREA |
Shipping Info
Weight per item
0.4300
Name
Parting Off Indexable Holders
FamilyName
TQHR/L-27
BrandName
Taegutec
